Deckhouse Design, version 3

Still not happy with the look of the ship, I decided to take a shot at designing the superstructure from the ground up. Again, since this ship is really a "never-was," I can pretty much do whatever I think looks good. To recap,
  • Version I: the out-of-box kit configuration.
  • Version II: a hybrid configuration described earlier which used much of the kit's forward structure - with enclosed bridge - and a newly-designed rear structure.

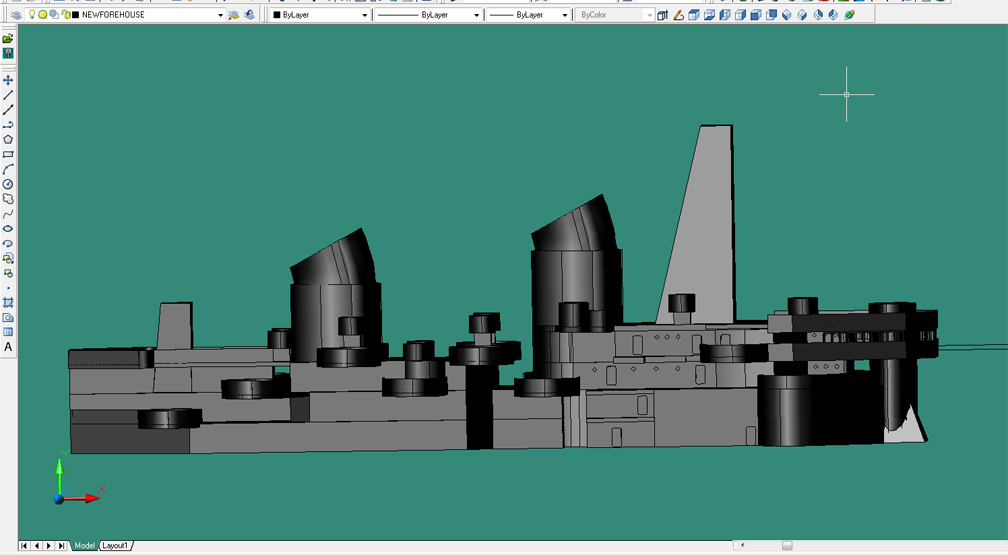

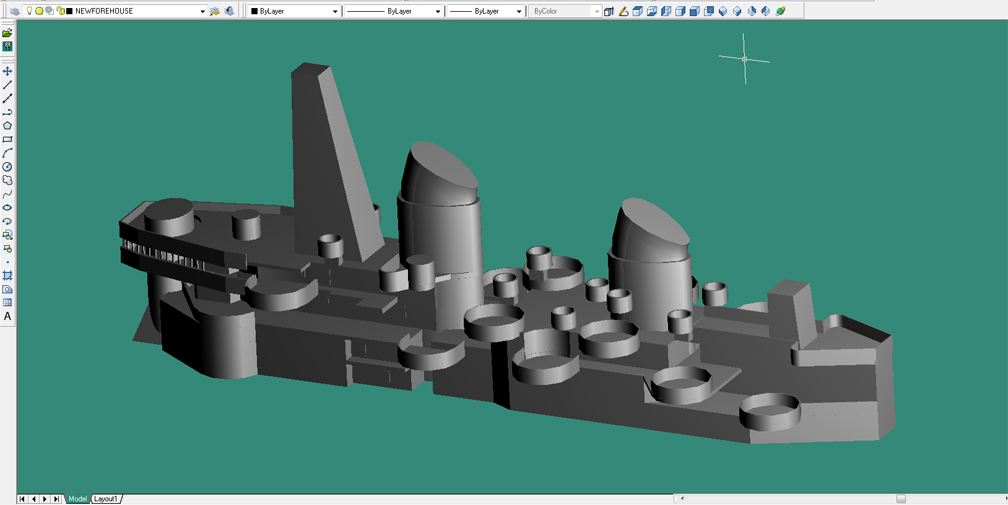

  • Version III: totally redesigned structure as shown in the diagrams below.

Click on any image to see larger version: use browser's BACK function to return.
The goal this time around was to arrive at a design which was blocky and massive in appearance: something befitting a monster the size of Montana.

At this point in the build, my desktop computer at home suffered a hard disk crash - and of course it was the disk containing all my photographs. "But you're an electrical engineer - certainly you had a backup?" Well yes of course: the problem is, the backup was 6-months out of date. So now I have an auto-scheduled redundant backup system and a power conditioner which is supposed to withstand a direct lightning hit to the house (living in SoCal this isn't really an issue, but if it can happen, it WILL happen to me...).

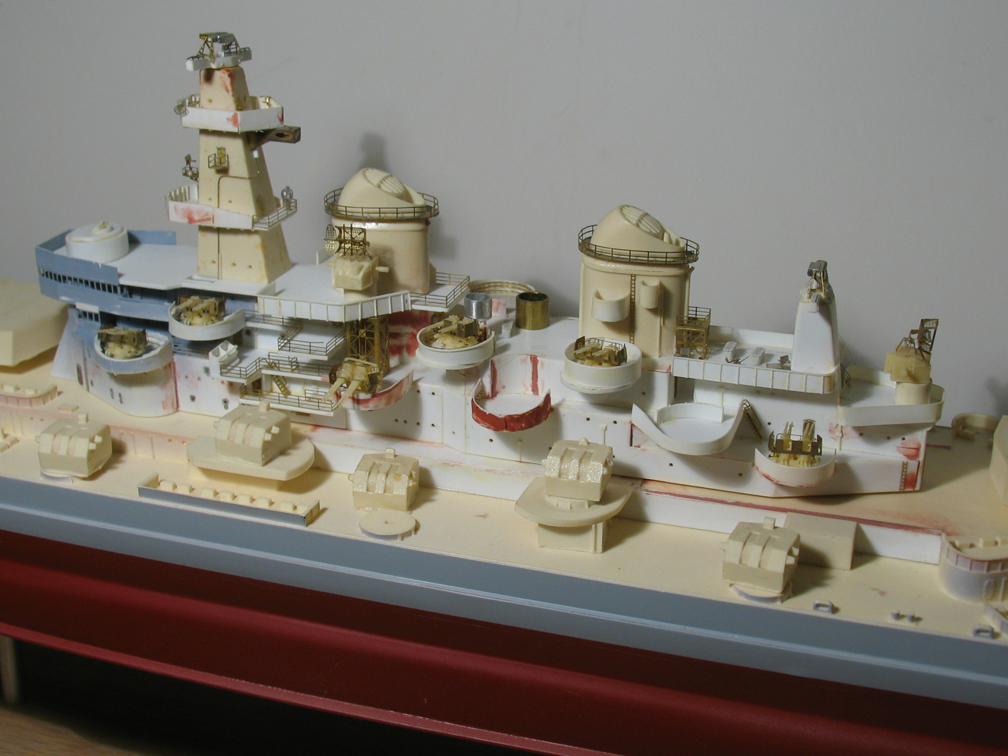

At any rate, I lost all the in-process construction photos of the most recent version of the superstructure. The images below show the ship in her current configuration. I say current, because it has been roughly two years since I worked on Montana, and I'm beginning to think I may want to take one last shot at the design of the superstructure. I like the look, but the workmanship is a bit lacking. Or maybe I just need to spend a bit more time finishing this version :)

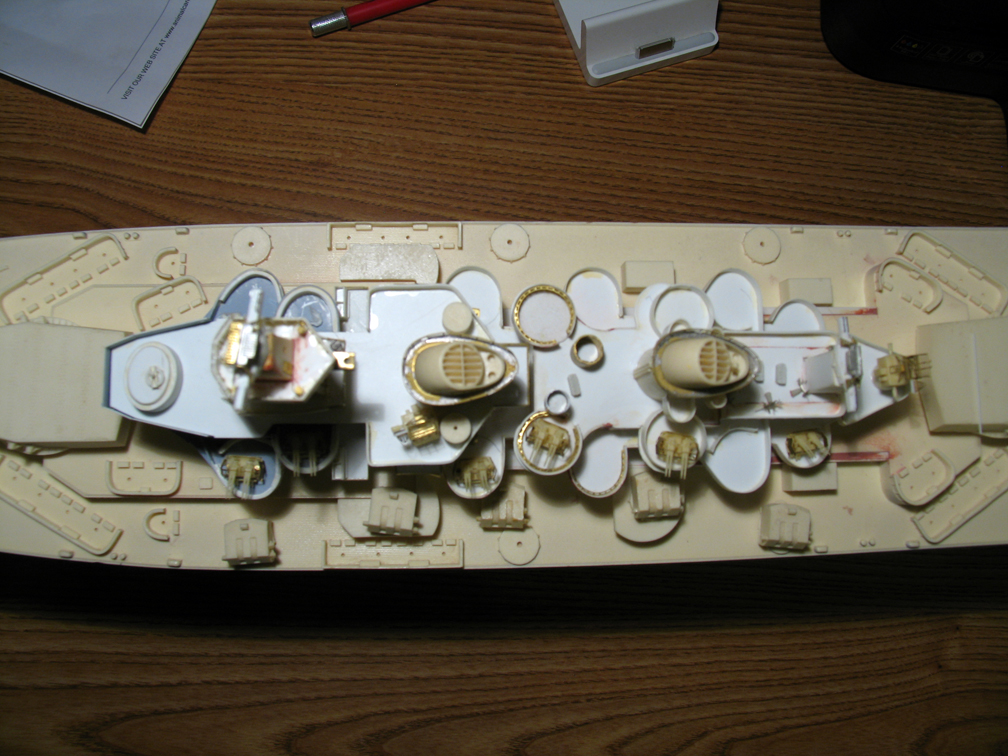

This is an overhead view of the superstructure as of late 2013. As can be seen, there are now a total of sixteen quad-40mm mounts, along with two single-20mm galleries: one between the stacks, and the other just aft of the after stack.

Many of the components are posing - for example, the circular gun tubs are just sitting in approximate postion.

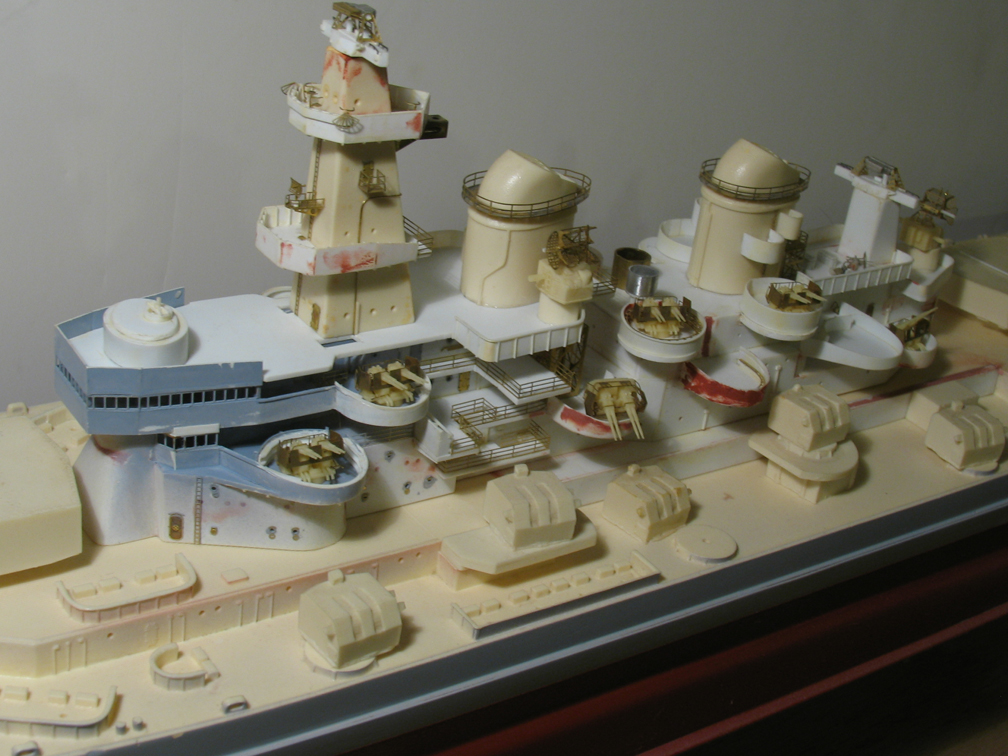

This view gives an idea of the bulk of the after superstructure: as you can see, it maintains a greater width on decks 02-04 than the previous version. Also, the port 5-inch director is shown on its circular mount, with a support structure visible beneath (running down to the 03 deck).

The only kit parts in use at this point are the stacks and the forward fire control tower.

Use the inner scrollbar at right as necessary!
